Daicel Safety Systems (Thailand) Co., Ltd. (DSST) in Thailand applied THERMAL-XR® graphene coating to its split-type air conditioner and measured a 11.97% reduction in energy use, translating to an estimated saving of 7,631 THB per year and a return on investment of under 2 years.
Case at a glance
| Customer | Daicel Safety Systems (Thailand) Co., Ltd. (DSST) |
|---|---|
| Location | Thailand |
| Equipment | Split-Type Air Conditioner |
| Brand | Carrier |
| Capacity | 48,000 BTU |
| Model | 38RLU048S301 |
| Equipment age | 8 years |
| Energy savings | 11.97% |
| Annual cost saving | 7,631 THB/year |
| Return on investment | < 2 years |
Background
Air conditioning and chiller systems are among the largest electricity users on an industrial site. Over time, condenser coils lose heat transfer efficiency, which forces compressors to work harder and increases energy consumption. At DSST, the split-type air conditioner is a Carrier unit with a capacity of 48,000 BTU, and it has been in service for 8 years.
The solution: THERMAL-XR®
THERMAL-XR® is a graphene-enhanced coating from Graphene Manufacturing Group (GMG), designed to deliver superior heat transfer and protection for heat exchanger coils. The coating was spray-applied to the coils of the split-type air conditioner, with no change to the equipment itself.
Results

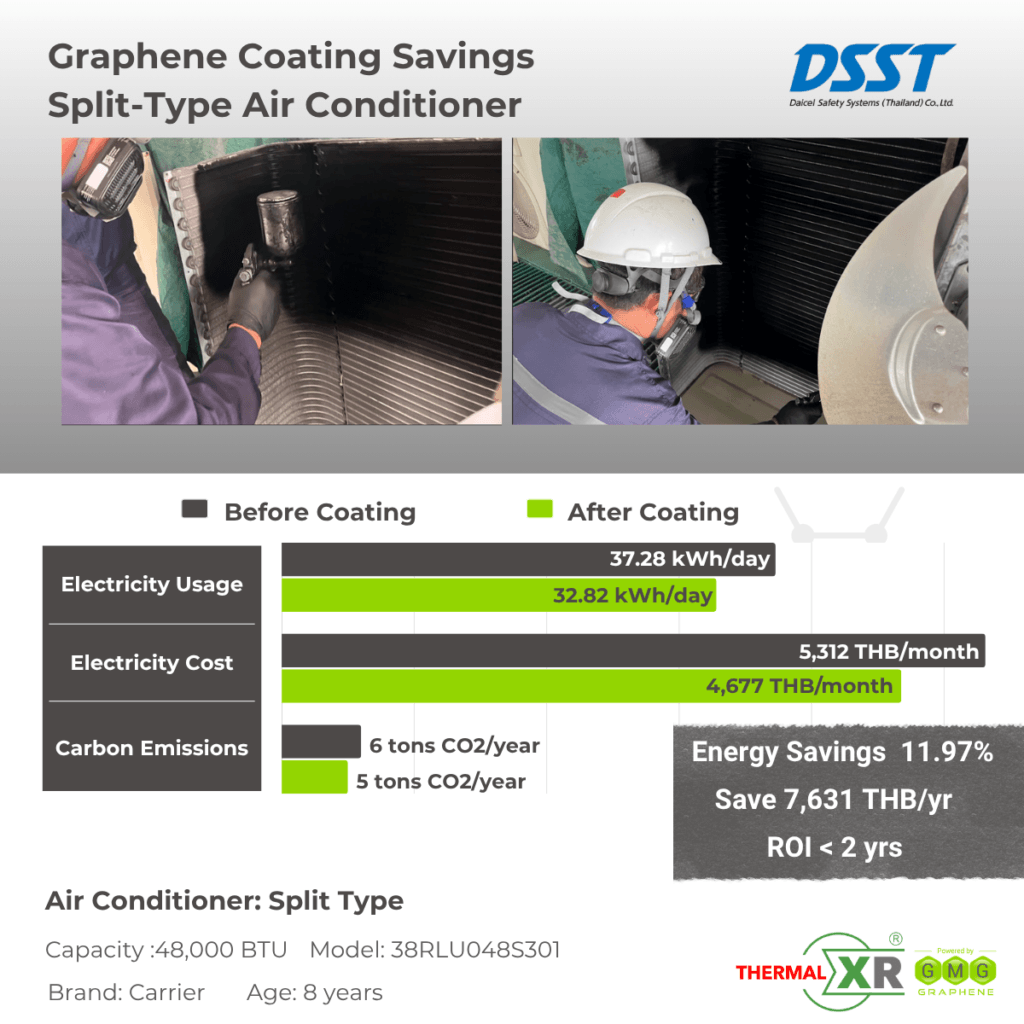

Energy use was compared before and after coating:
- Electricity usage: 37.28 kWh/day before coating vs 32.82 kWh/day after
- Electricity cost: 5,312 THB/month before coating vs 4,677 THB/month after
- Carbon emissions: 6 tons CO2/year before coating vs 5 tons CO2/year after
- Annual saving: 7,631 THB per year
- ROI: < 2 years
These results equal an energy saving of 11.97%.
Takeaway
The DSST case shows that coating existing split-type air conditioners can lower energy consumption and electricity costs without replacing equipment, even on units that have been running for 8 years.
Want similar results at your site? Contact GMG or your local THERMAL-XR® distributor to discuss your cooling equipment.
Measured energy savings presented in this case study are not predictors of future installation results. Estimated savings should be considered as estimates. Standard GMG disclaimer applies. All contents copyright © Graphene Manufacturing Group Ltd. All rights reserved.
